Product code FTW CYP 01 — custom-built and QC-checked in Qingdao. Send the drawing to adjust spec, size or finish.
| Product Code | FTW CYP 01 |
|---|---|
| Model | Oval Rail with Square Post Panel 1.8m x 2.1m |

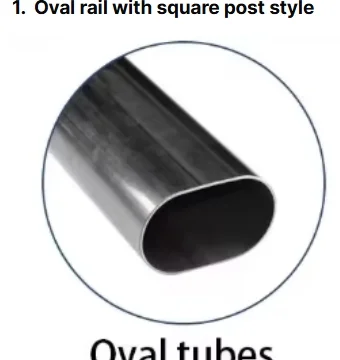

| Material | Oval rail 40x80mm on square post 40x40mm, galvanized steel |
| Surface Treatment | Hot-dip galvanized (pre-galvanized optional) |
| Weight | approx. 30-35 kg per panel |
| Dimensions | 1800 mm H x 2100 mm L (standard, custom sizes on request) |
| Accessories | Pin-and-latch connectors, post foot plates |
| Color | Silver |
| Suitable For | Cattle, calves, horses |
Also on WeChat: +86 186 5328 6102 · add me

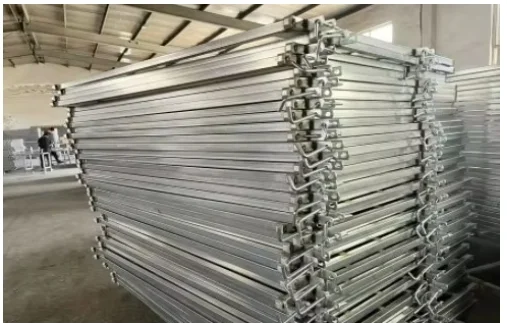

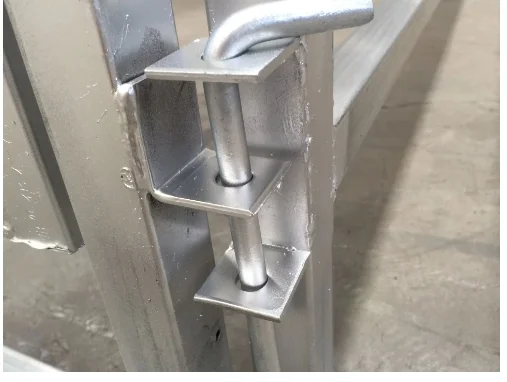

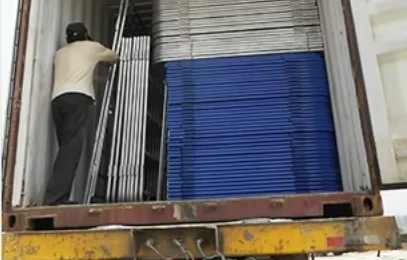

The Oval Rail Cattle Yard Panel is the workhorse of the Australian-style cattle yard: an oval top rail 40x80mm welded to a 40x40mm square post frame, with five to six rails for maximum animal contact strength. Oval rail spreads impact load and resists bending far better than round tube, so panels stay straight through years of cattle pressure. Every panel is hot-dip galvanized inside and out, giving a thick zinc layer that protects weld points and cut edges in rain, mud and manure. Panels connect with a simple pin-and-latch system, so one person can build, move or reconfigure a full yard without special tools. Standard size is 1.8m high x 2.1m long; rail count, height and length can be made to your drawing. Send your panel count, layout sketch and port of destination and we will quote with MOQ and lead time, usually within 24 hours. Every order is inspected before packing and loaded for sea freight with photos provided. Contact us on WhatsApp or by email for the specification sheet and pricing.
