Representative Parts

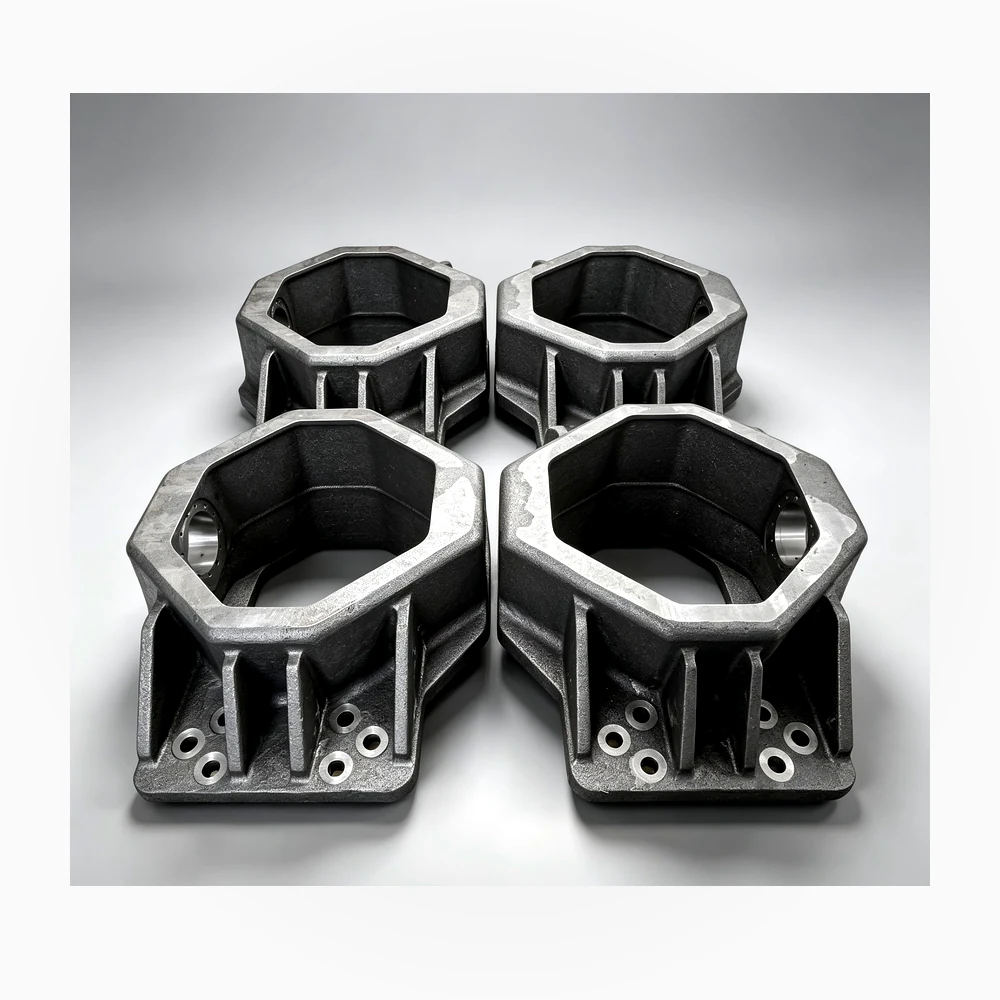

Spinning Frame Spindle Housing
GG20 grey-iron housing, vibration-damping, drop-in for Savio/Marzoli frames.
Process: Resin sand cast → CNC bore/tap ±0.02mm → grind → anti-rust
Use: Ring spinning, rotor, draw frames
Request a quote →
Loom Cam Shaft / Beating Sword
45# / alloy cam for rapier & jet looms, quenched HRC38-42, balanced.
Process: Forge → heat treat → CNC mill → grind Ra1.6 → phosphate
Use: Rapier, air-jet, projectile looms
Request a quote →
Two-for-One Twister Wheel
Aluminum CNC friction wheel, speed-matched, surface-hardened.
Process: Aluminum CNC turn/mill → harden → anodize
Use: Twisters, uptwisters, fancy yarn
Request a quote →

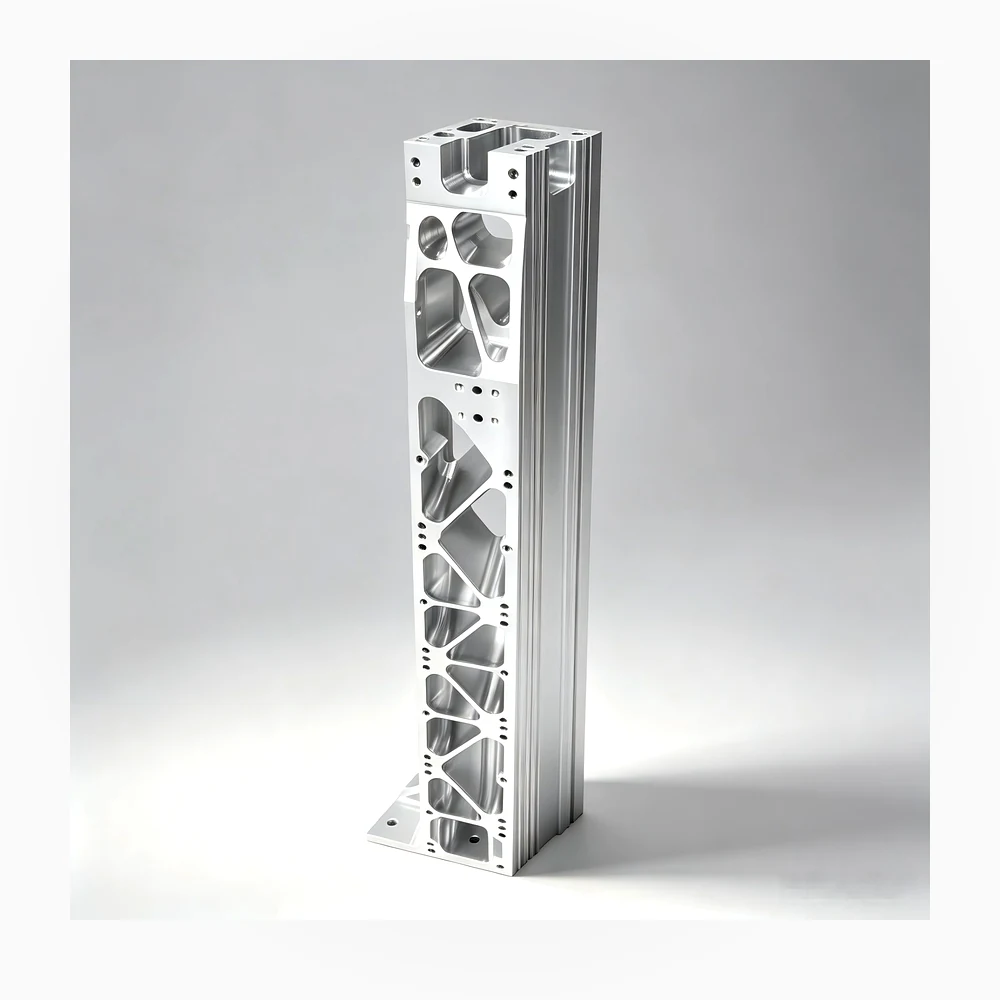

Tension Disc / Guide Bracket
304 stainless or alloy bracket, precision-ground contact face.
Process: CNC turn → surface grind Ra0.8 → passivate/black oxide
Use: Winding, warping, tension systems
Request a quote →Don't see your exact part? Send the drawing — most builds are by spec, not from a catalog.
